LightWELD®
Handheld Laser Welding Systems
4x
Faster than TIG
Up to 0.313"
Welding Capability
100
Welding & Cleaning Presets
Prepare to be amazed!
LightWELD handheld laser welding and cleaning systems are designed to revolutionize your weld quality and productivity. LightWELD laser welding is fast, easy to learn, and produces high quality, consistent results across a wide range of materials and thicknesses. Pre-weld and post-weld laser cleaning functionality optimizes weld quality while increasing productivity.
4x
Faster than TIG
Up to 0.313"
Welding Capability
100
Welding & Cleaning Presets
Prepare to be amazed!
LightWELD handheld laser welding and cleaning systems are designed to revolutionize your weld quality and productivity. LightWELD laser welding is fast, easy to learn, and produces high quality, consistent results across a wide range of materials and thicknesses. Pre-weld and post-weld laser cleaning functionality optimizes weld quality while increasing productivity.
Experience LightWELD
Seeing is believing. That's why we want you to see LightWELD in action, whenever and however you want.
I'm Ready!LightWELD Product Comparison
 |  |  |
| LightWELD 1000 | LightWELD 1500 XR | LightWELD 2000 XR |
| Cost-Effective Power | Extended Range Laser Welding & Cleaning | Maximized Power & Performance |
| Get a Quote | Get a Quote | Get a Quote |
| Welding Capability | ||
|---|---|---|
| Steels | ||
| up to 9 gauge (0.156") | up to 4 gauge (0.234") | up to 0 gauge (0.313") |
| Aluminum 3 & 5 | ||
| up to 8 gauge (0.129") | up to 3 gauge (0.229") | up to 0 gauge (0.325") |
| Aluminum 6 | ||
| up to 8 gauge (0.129") | up to 4 gauge (0.204") | up to 3 gauge (0.229") |
| Nickel Alloy | ||
| - | up to 6 gauge (0.203") | up to 1 gauge (0.281") |
| Titanium | ||
| - | up to 6 gauge (0.203") | up to 4 gauge (0.234") |
| Copper | ||
| - | up to 12 gauge (0.081") | up to 8 gauge (0.129") |
| Wobble Welding | ||
| up to 0.200" | up to 0.200" | up to 0.200" |
| Wire Welding | ||
| Yes | Yes | Yes |
| Cleaning Capability | ||
| Cleaning Width | ||
| up to 0.600" (optional) | up to 0.600" | up to 0.600" |
| General Characteristics | ||
| Laser Power | ||
| up to 1000 W | up to 1500 W | up to 2000 W |
| Cooling | ||
| Air | Air | Air |
| Learn More | Learn More | Learn More |
|
|||||||||||||||
| Welding Capability | |||||||||||||||
| Steels | up to 9 gauge (0.156") | up to 4 gauge (0.234") | up to 0 gauge (0.313") | ||||||||||||
| Aluminum 3 & 5 | up to 8 gauge (0.129") | up to 3 gauge (0.229") | up to 0 gauge (0.325") | ||||||||||||
| Aluminum 6 | up to 8 gauge (0.129") | up to 4 gauge (0.204") | up to 3 gauge (0.229") | ||||||||||||
| Nickel Alloy | - | up to 6 gauge (0.203") | up to 1 gauge (0.281") | ||||||||||||
| Titanium | - | up to 6 gauge (0.203") | up to 4 gauge (0.234") | ||||||||||||
| Copper | - | up to 12 gauge (0.081") | up to 8 gauge (0.129") | ||||||||||||
| Wobble Welding | up to 0.200" | up to 0.200" | up to 0.200" | ||||||||||||
| Wire Welding | Yes | Yes | Yes | ||||||||||||
| Cleaning Capability | |||||||||||||||
| Cleaning Width | up to 0.600" (optional) | up to 0.600" | up to 0.600" | ||||||||||||
| General Characteristics | |||||||||||||||
| Laser Power | up to 1000 W | up to 1500 W | up to 2000 W | ||||||||||||
| Cooling | Air | Air | Air | ||||||||||||
| Learn More | Learn More | Learn More | |||||||||||||
Product availability may vary by region.
Weld.com Demo & Review
Watch Paul Sableski from Weld.com demonstrate the features, capabilities, and just how easy LightWELD is to set up and operate at “lightning speed.” Paul uses LightWELD to quickly create:
- 3 mm Aluminum Butt Weld
- Stainless Steel T-Joint, 6 mm to 1 mm
- Stainless Steel Lap Joint with wire feeder
Less Heat & Distortion for More Productivity & Flexibility

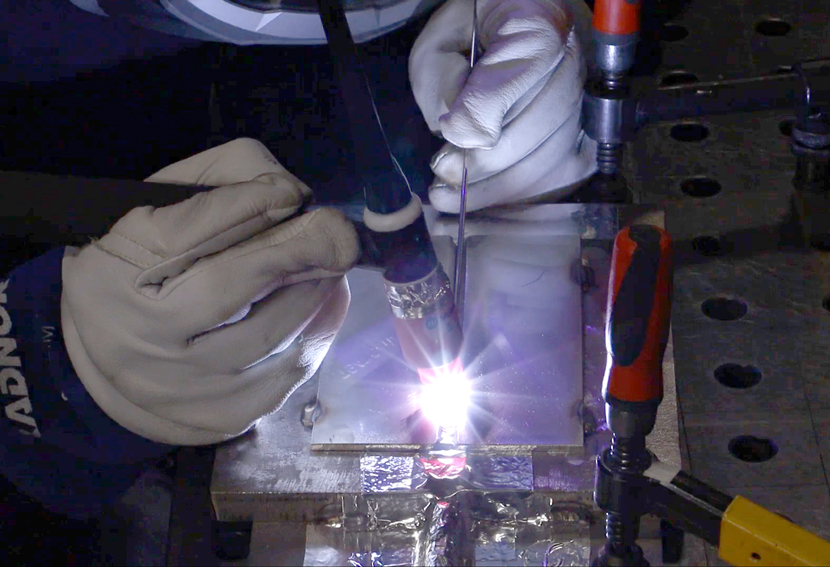

TIG Welding
TIG welding is a time-consuming, two-handed welding method that requires an experienced, highly-skilled operator. TIG welding may generate extreme heat that deforms thin materials, produces poor visual finishes, is difficult when welding copper, and limited when welding metals of dissimilar thicknesses.

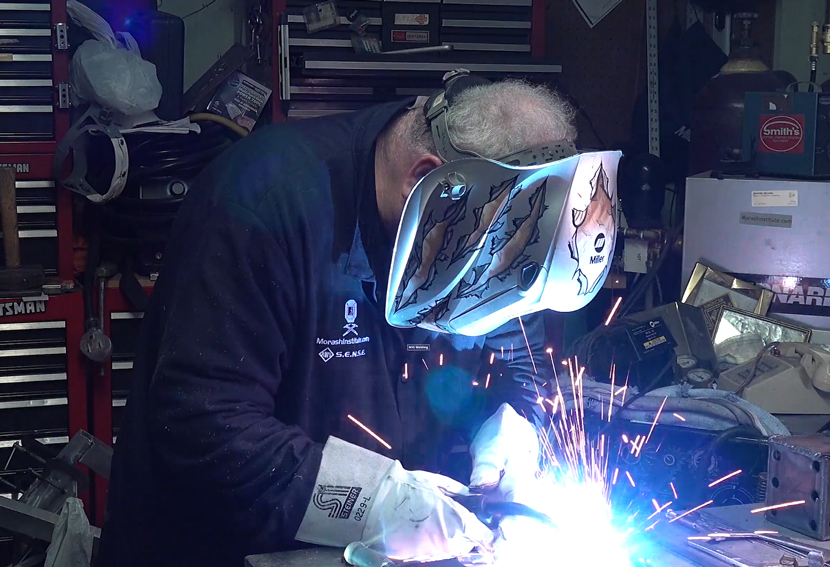

MIG Welding
MIG welding requires consumable wire, material pre-cleaning and beveled joints for thick metals for full penetration. Travel and work angles are limited and vertical positions are extremely challenging.
LightWELD
LightWELD enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent results across a wider range of materials and thicknesses than MIG or TIG with minimal distortion, deformation, undercut or burn-through.
Factory Presets Ensure Optimized Welds & Cleaning
- Simple preset selection ensures consistent high-quality laser welds and cleaning
- Presets include wobble welding function to accommodate wider seams and for parts with poor fit-up
- Operators can instantly switch between presets to process multiple material-thickness combinations
- Advanced operators can customize presets, save for future use and can be used by novice operators to produce the same results
- Novice operators require less training which reduces labor costs while preserving quality, increasing productivity, and decreasing scrap
“In my 41 years in the business, I have never seen a welder that allows beginners to make welds like seasoned pros!”
Fast & Easy Set Up
220 V Power
Standard Gas
Workpiece Clamp
Connectivity
Operator Safety Features
- Key switch control to secure system from unauthorized operation
- Emergency stop button for immediate shut down
- Safety interlock verifies integrity of laser delivery to the welding gun
- 2-step weld torch trigger, enable and then fire, for intentional operation
- Laser only fires while the nozzle is in contact with the part
- Laser power shuts off if no welding plume is detected
- Specially designed welding helmet and laser safety glasses
- Door switch interlock circuits shut down laser if anyone other than operator unexpectedly enters the welding area
Maximize Productivity with a Collaborative Robot System
Free up skilled welders to focus on more complex welds with the LightWELD Cobot System, a high-precision laser welding collaborative robot.
Powered by LightWELD laser welding and cleaning technology, this flexible system enables shops to maximize productivity with no-fuss automation of repetitive welding jobs. No robot or programming experience required.
