Infrared Nanosecond Fiber Lasers

Pulsed Lasers for Cleaning & Precision Processing

Overview
Contact Us
Wall-Thickness-Icon

2-10,000 kHz

Repetition Rate

Pulse-Duration-Icon

0.15-2000 ns

Pulse Duration

High-Power-Icon

Up to 3 kW

Average Power

Utilizing laser pulses measured in billionths of a second, infrared nanosecond pulsed lasers are used for materials applications across a wide range of industries.

Unique IPG fiber laser technology and innovation has enabled the design and production of nanosecond fiber lasers that offer unmatched capabilities, reliability, and energy efficiency in a compact, industrial package.

  • IPG Image
  • IPG Image
Wall-Thickness-Icon

2-10,000 kHz

Repetition Rate

Pulse-Duration-Icon

0.15-2000 ns

Pulse Duration

High-Power-Icon

Up to 3 kW

Average Power

Utilizing laser pulses measured in billionths of a second, infrared nanosecond pulsed lasers are used for materials applications across a wide range of industries.

Unique IPG fiber laser technology and innovation has enabled the design and production of nanosecond fiber lasers that offer unmatched capabilities, reliability, and energy efficiency in a compact, industrial package.

Better, Faster Precision Processing

IPG infrared nanosecond pulsed fiber lasers are used for high precision cleaning, cutting, marking, drilling, scribing, and engraving. Regardless of the application at hand, the ability to tailor laser parameters to match application requirements enables faster processing and higher quality results.



With the highest average powers and pulse energies on the market, IPG nanosecond fiber lasers can be configured for the most demanding precision applications.



  •
Optimized Laser Cleaning

Optimized Laser Cleaning

Offering a combination of high precision and high throughput, nanosecond lasers are a common choice for surface treatment applications like cleaning and surface treatment.

Whether used for wide area material removal or creating a high volume of micro-features, the unrivaled power of IPG nanosecond lasers fiber provides the highest potential for process optimization available.


High-Speed, High-Quality Foil Cutting

Unrivaled IPG nanosecond fiber laser technology offers a combination of high laser power and excellent beam quality that no other laser manufacturer can match.

These capabilities enable higher throughput and quality in foil cutting and trimming applications, often eliminating the need for more expensive picosecond and femtosecond lasers.

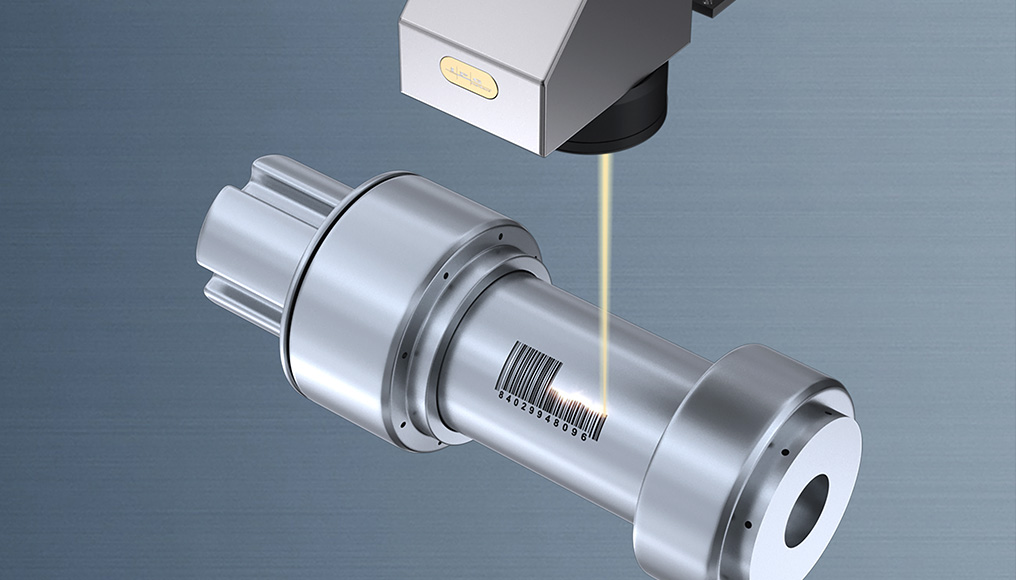

The Clear Choice for Marking

The Clear Choice for Marking

IPG introduced nanosecond pulsed fiber lasers to the market in 1996, leading to a sweeping change with almost every supplier of laser marking systems switching to fiber lasers as their marking tool of choice.

Nanosecond fiber lasers offer unbeatable reliability and performance for both general marking applications and dark marking processes that require higher pulse energy.

Ask Us Anything

Whether you need a custom laser solution or just want to learn more from our global team of laser experts, we're here to help.

Get Started

Nanosecond Pulsed Fiber Laser Comparison

Drag to see all 5 productsimage

Nanosecond Fiber Laser CabinetsHigh Pulse Energy Nanosecond Fiber LasersHigh Brightness Nanosecond Fiber LasersNanosecond Fiber Laser ModulesNanosecond Fiber Laser Modules
Nanosecond Fiber Laser CabinetsHigh Pulse Energy Nanosecond Fiber LasersHigh Brightness Nanosecond Fiber LasersNanosecond Fiber Laser ModulesNanosecond Fiber Laser Modules
YLPN-S SeriesYLPN-R SeriesYLPN-R SeriesYLPN-M SeriesYLPN-M Series
Wavelength
1064 nm1064 nm1064 nm1064 nm1064 nm
Average Power
up to 3 kWup to 2 kWup to 2 kWup to 500 Wup to 100 W
Beam Quality (M2)
--1.5 to 121.5 to <2<2
Beam Quality (BPP)
Round Core: 19 or 22 mm x mrad
Square Core: 24 or 31 mm x mrad		9 to <24 mm x mrad---
Pulse Energy
up to 150 mJup to 100 mJup to 10 mJup to 2 mJup to 1 mJ
Pulse Duration
25, 50, 70, 100 nsAdjustable: 20 to 2000 nsAdjustable: 30 to 2000 nsAdjustable: 0.15 to 500 nsAdjustable or Fixed: 1.5 to 350 ns
Pulse Repetition Rate
2 to 300 kHz2 to 8000 kHz2 to 8000 kHz2 to 10,000 kHz2 to 500 kHz
Cooling
WaterWaterWaterAirAir or Conductive
Learn MoreLearn MoreLearn MoreLearn MoreLearn More
Nanosecond Fiber Laser CabinetsHigh Pulse Energy Nanosecond Fiber LasersHigh Brightness Nanosecond Fiber LasersNanosecond Fiber Laser ModulesNanosecond Fiber Laser Modules
Nanosecond Fiber Laser CabinetsHigh Pulse Energy Nanosecond Fiber LasersHigh Brightness Nanosecond Fiber LasersNanosecond Fiber Laser ModulesNanosecond Fiber Laser Modules
YLPN-S SeriesYLPN-R SeriesYLPN-R SeriesYLPN-M SeriesYLPN-M Series
Wavelength 1064 nm1064 nm1064 nm1064 nm1064 nm
Average Power up to 3 kWup to 2 kWup to 2 kWup to 500 Wup to 100 W
Beam Quality (M2) --1.5 to 121.5 to <2<2
Beam Quality (BPP) Round Core: 19 or 22 mm x mrad
Square Core: 24 or 31 mm x mrad		9 to <24 mm x mrad---
Pulse Energy up to 150 mJup to 100 mJup to 10 mJup to 2 mJup to 1 mJ
Pulse Duration 25, 50, 70, 100 nsAdjustable: 20 to 2000 nsAdjustable: 30 to 2000 nsAdjustable: 0.15 to 500 nsAdjustable or Fixed: 1.5 to 350 ns
Pulse Repetition Rate 2 to 300 kHz2 to 8000 kHz2 to 8000 kHz2 to 10,000 kHz2 to 500 kHz
Cooling WaterWaterWaterAirAir or Conductive
  Learn MoreLearn MoreLearn MoreLearn MoreLearn More

The specifications above represent standard products. IPG can offer lasers with customized specifications upon request.

Product availability may vary by region.

Discover your laser solution with IPG

Discover Your Laser Solution

IPG is more than just the inventor and premier supplier of high-power fiber lasers. Whether you need components or custom laser systems, IPG offers comprehensive solutions for virtually every industry and application.

IPG is a partner for every stage of your laser processing journey, from initial application development to ongoing service and support.

Learn More
IPG Image

How Can We Help?

Whether you need a laser with custom specifications or simply want to learn more about laser processing, an IPG nanosecond fiber laser expert is ready to help you find your fiber laser solution.
